Calibration Services

Helium Leak Testing, Inc. calibration capabilities include all models and ranges of leak standards. We offer competitive pricing and turn-around times. Special calibrations include specific leak rates, pressure differentials and unique gases. Our vast inventory of hardware can adapt to any port connection.

Specialty gas calibrations and expedited schedules are available upon request.

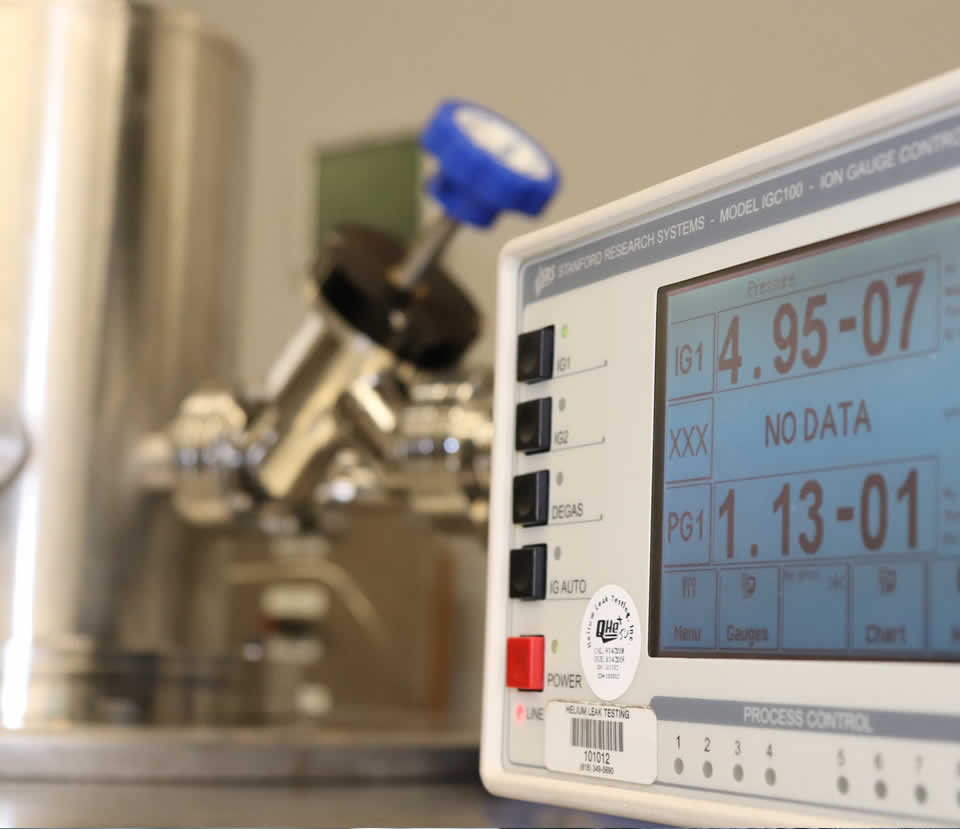

All vacuum gauge calibrations are performed in accordance with HLT-QAM, Rev. H. Helium Leak Testing calibration masters are tested by NIST, therefore directly traceable to NIST in order to maintain an unbroken chain of competent calibrations.

Calibration

In recognition of the successful completion of the A2LA evaluation process, accreditation is granted to this laboratory to perform the following calibrations.

Fluid Quantities

Parameter
Gas Flow Rate – Helium

Range
[(1 x 10-10) to (1 x 10-3)]
Atm cc/sec, Helium

CMC^{2, 3} (±)
4.0 %

Comments
Mass spectrometer comparison calibration systems

Mechanical

Parameter
Vacuum Gauges – All Gauges

Range
[(1 x 10^-3) to Atm] Torr
Atm cc/sec, Helium

[(1 x 10^-7) to (1 x 10^-3)] Torr

CMC^{2, 3} (±)
4.4 %

4.4%

Comments
Vacuum gauge measurement system w/ capacitance manometers static comparisons

Vacuum gauge measurement system w/ spinning rotor gauge dynamic comparison

Manufactures

Servicing a wide range of Manufactures.

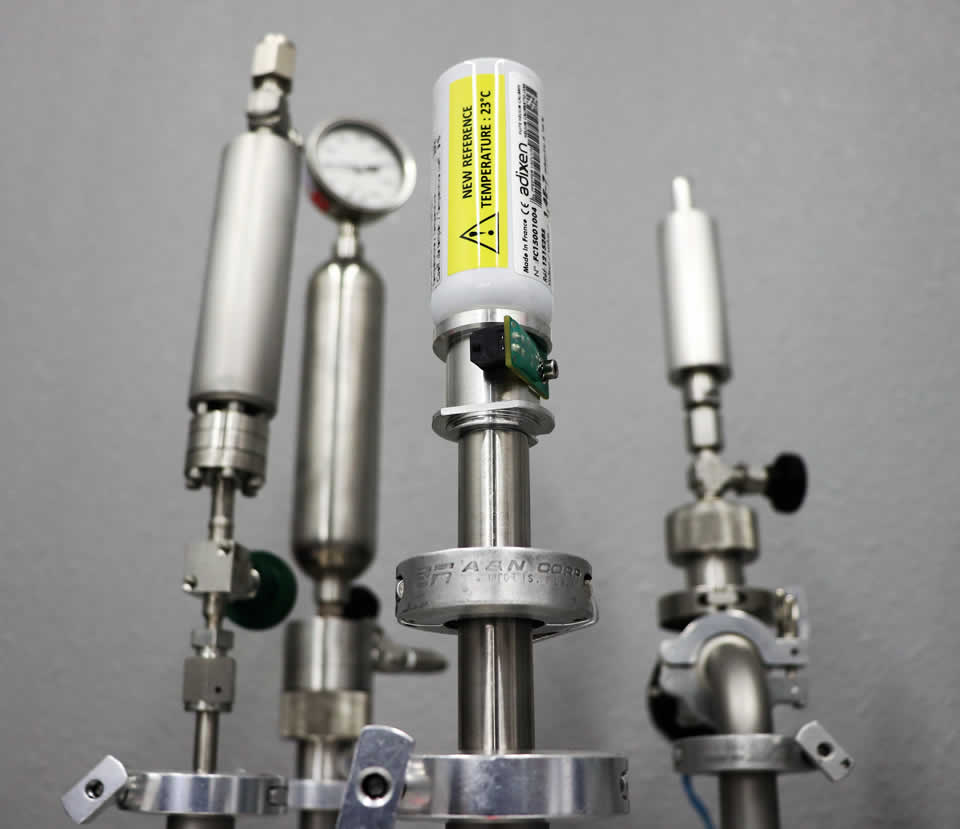

Helium Leak Standards

Helium Leak Testing calibration laboratory is certified and accredited to calibrate most types and brands of helium leak standards. Please contact us to verify we can calibrate your equipment if it is not listed below.

Type: Fixed, Single Pressure & Multi Pressure
Range: 1×10-10 to 1×10-3 atm cc/sec

Vacuum Gauges

Helium Leak Testing calibration laboratory is certified and accredited to calibrate most types and brands of vacuum gauges. Below are examples of several vacuum ranges and types. Please contact us to verify we can calibrate your equipment if it is not listed below.
INQUIRE ABOUT ON SITE CALIBRATION CAPABILITIES!

Specialty gases offered: Ultra High Purity Nitrogen, Argon or Xenon

Indirect Type: Hot Cathode Ionization/Bayard-Alpert/Nude Ion
Ranges: (10-7 Torr to 10-3 Torr)

Indirect Type: Cold Cathode Ionization/Inverted Magnetron/Penning
Ranges: (10-7 Torr to 10-3 Torr)

Indirect Type: Pirani/Convection Enhanced Pirani, Piezo Pirani
Ranges: (10-3 Torr to 1000 Torr)

Type: Combination – Hybrid Ion, Cold Cathode and Pirani, Hot Cathode and Pirani, Cold Cathode Piezo
Ranges: (10-7 Torr to 1000 Torr)

Indirect Type: Thermocouple Vacuum Tube (thermoconductivity)
Ranges: (10-3 Torr to 1000 Torr)

Direct Type: Capacitance Diaphragm/Piezo
Ranges: (10-3 Torr to 1000 Torr)

Direct Type: Indirect
Ranges: (10-7 to 10-1 Torr)

Gas Detectors

Helium Leak Testing calibration laboratory can calibrate most types of hand-held gas detectors. Below are examples of hand-held gas detectors that Helium Leak Testing can calibrate. Please contact us to verify we can calibrate your equipment if it is not listed below.

Type: Helium
Range: 1×10-5 ml/sec or greater

Type: Refrigerant
Range: 0.05 to 1.77 oz/yr or 1.41 to 50.1 g/yr

Type: Isobutylene
Range: 100 ppm @ 0.5 SLPM
